Spark Transmitter/Receiver Collection

This collection of parts was bought as one lot but may be made up of parts from different sources.

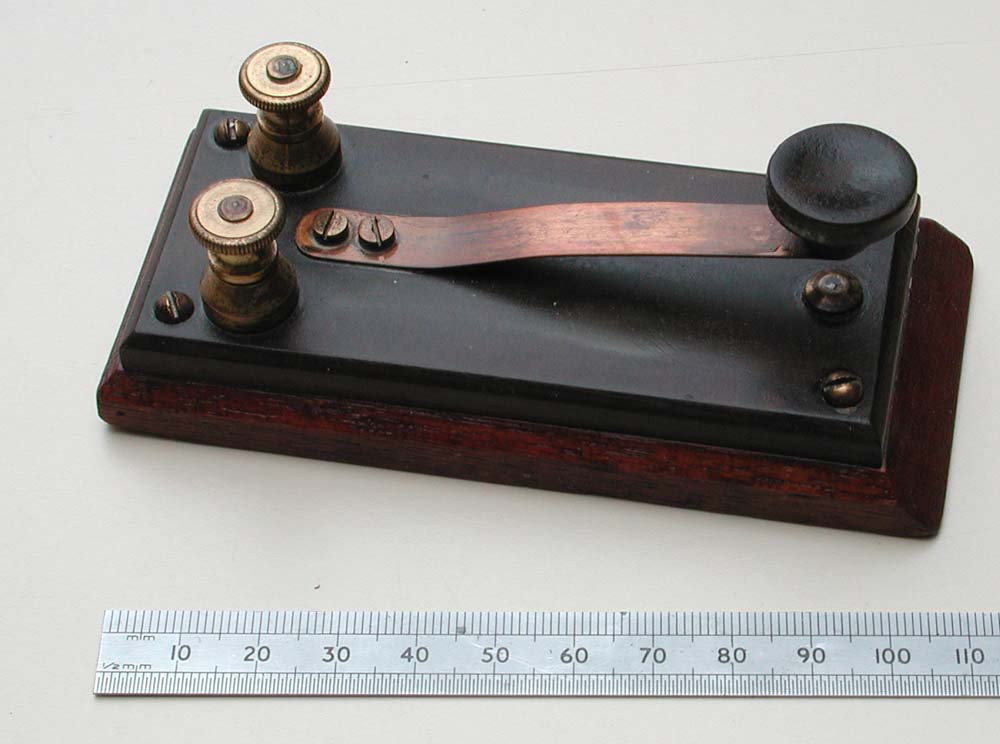

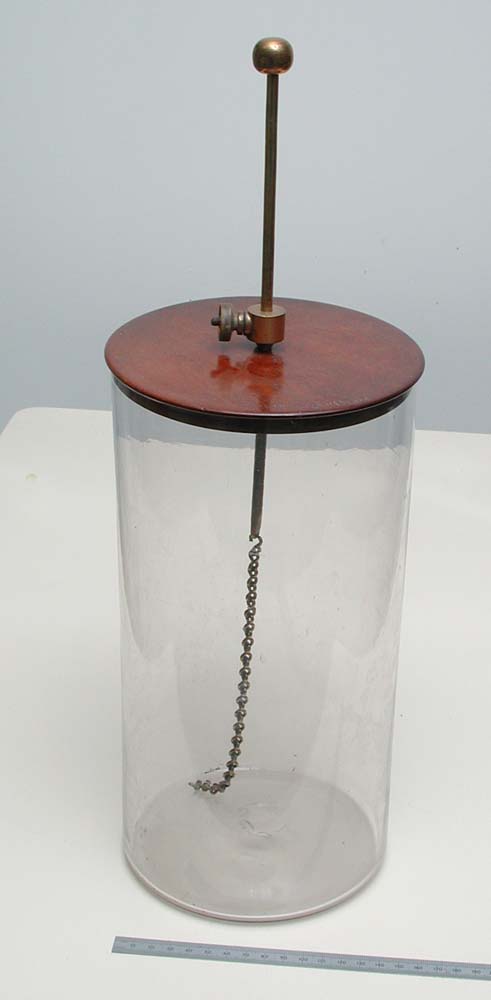

The spark coil (1) can generate a 1" long spark that equates to about 50kV. Picture 2 is a 1920s detector, picture 3 is of a 0.01uF capacitor and picture 4 of a fixed inductor. The morse key does not look substantial enough to be used with the spark coil. There are 2 variable industors, one switched (6 & 7) and one slider (8). The Leyden jar (9) did not have any metalisation when received.

Click on thumbnails for larger pictures.

1

2

3

4

5

6

7

8

9
